How do I need to wire this??
|
Bronze Member Username: Error_505Amory, MS USA Post Number: 33 Registered: Mar-06 | How would I wire this to be at 250 watts @ 2 ohms? Or would bridged 500 watts x 1 @ 4 ohms be better? I know how to bridge it, but would like to go 2 ohm if it is better. Any suggestions would be helpful. BTW I did buy this amp and I do have these speakers, so this is not theoretical. Thanks for your answers!! Rockford Fosgate Punch P5002 2 channels 125 W x 2 @ 4 Ohms RMS 250 W x 2 @ 2 Ohms RMS 500 W x 1 @ 4 Ohms Bridged RMS HP 40-400Hz 12dB per Octave LP 40-400Hz 12dB per Octave Frequency Response 20 to 20k Hz +/- .5 dB Remote Punch Bass RCA Inputs RCA Pass-thrus Class A/B topology 2.4 X 11 X 13.7 (inches) Rockford Fosgate 12" Punch Stage 2 Subwoofer 400 Watts Maximum Power Handling / 200 Watts RMS 4 Ohm Single Voice Coil Operation with Parabolic Polypropylene Cone |
|
Silver Member Username: Dustin3Tigard, Or U.S. Post Number: 603 Registered: Oct-05 | it doesnt matter what you do. 2 ohm and 4 ohm doesnt matter. it only matter in what your amp can handle. for wiring help use this website, it will tell u exactly: www.the12volt.com and then go to woofer wiring |
|

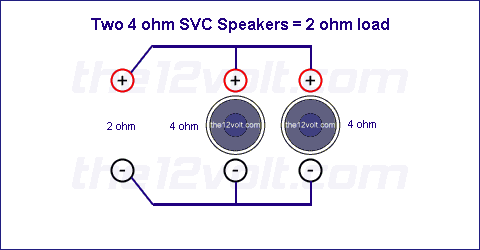

Bronze Member Username: Error_505Amory, MS USA Post Number: 36 Registered: Mar-06 | Speakers wired in parallel Recommended Amplifier: Stable at 2 or 1 ohm mono My amp isn't mono so how would I wire it? Bridge it and wire it like this?  |
|
Gold Member Username: TjmutlowPost Number: 1697 Registered: Sep-05 | no, your amp is stable at 4ohms bridged, you can not run it bridged with 2 single 4ohm subs... |
|
Bronze Member Username: Error_505Amory, MS USA Post Number: 39 Registered: Mar-06 | Should I try to get 8 ohm p2's? You guys are telling me what I can't do do, but not what I can do. Please give me something positive.....lol But thanks for the input |
|
Gold Member Username: TjmutlowPost Number: 1705 Registered: Sep-05 | yes, use 2 single eight ohm or 2 dual 4 ohm subs. |
|
Bronze Member Username: Error_505Amory, MS USA Post Number: 42 Registered: Mar-06 | Those 8 ohm speakers are hard to find for a good price. I haven't checked on DVC though. Thanks! |
|
Silver Member Username: Koz1031Monticello, In United states Post Number: 427 Registered: Jul-04 | run the speakers in parallel and bridge the amp you'll be fine then |
|
Gold Member Username: TjmutlowPost Number: 1731 Registered: Sep-05 | no you wont, amp not stable at 2ohms bridged.... |
|
Silver Member Username: Dustin3Tigard, Or U.S. Post Number: 628 Registered: Oct-05 | the first thing you should have looked at is dvc 4 ohm subs... |
|
Bronze Member Username: Error_505Amory, MS USA Post Number: 49 Registered: Mar-06 | Yes I know that now...lol I am buying a new amp. It is the T5002. I thought they said P5002 over the phone, very easy to be confused. The T5002 should work fine from the 4 ohm svc subs I have. I sure hope so.....lol Thank you all for the posts and the help. You are a great group of pple and Im glad I found you guys. BTW, I'm selling my P5002 for 190$ shipped. It is also listed on eBay. Fosgate T5002 Power Amp 2 channel 75 W x 2 @ 4 Ohms RMS 150 W x 2 @ 2 Ohms RMS 250 W x 2 @ 1 Ohms RMS 300 W x 1 @ 4 Ohms Bridged RMS 500 W x 1 @ 2 Ohms Bridged RMS 500 Watts total power 2 Rockford Fosgate P212S4 12" Subwoofers SVC 400 Watts Maximum Power Handling / 200 Watts RMS - 4 Ohm Single Voice Coil Operation with Parabolic Polypropylene Cone |
|
Gold Member Username: TjmutlowPost Number: 1738 Registered: Sep-05 | will be fine |
