Ford Focus Install .......



Gold Member
Username: Rovin

Trinidad & T...

Post Number: 8852
Registered: Jul-05
Finished 2day doing a small install 4 some1 on a 2006 model Ford Focus -- car is about 3mths old

Replaced stock HU with a Kenwood eXcelon KDC-X789 (his choice)
Replaced stock Door speakers with some DLS Ref6.5" PS6
Placed 1 15" MMATS P2.5 400wrms sub in trunk 4" ported around 33 Hz approx , sub & port on slanted front of box which is about 2.8cuft
Both sub/box & amp was both bought used in very good condition from 1st owner - HU & DLS r brand new

Stock Double Din HU (4got 2 take out pic b4 i removed it)
Upload

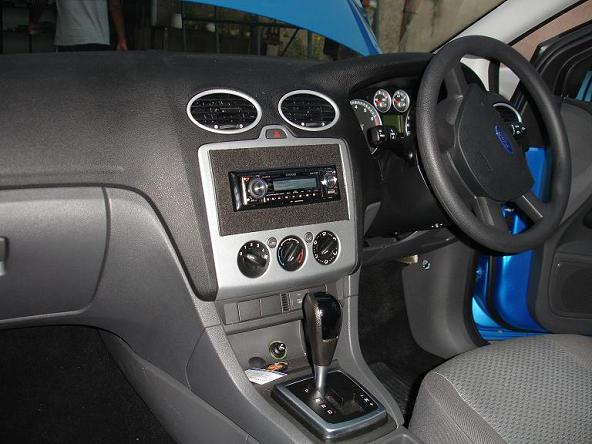

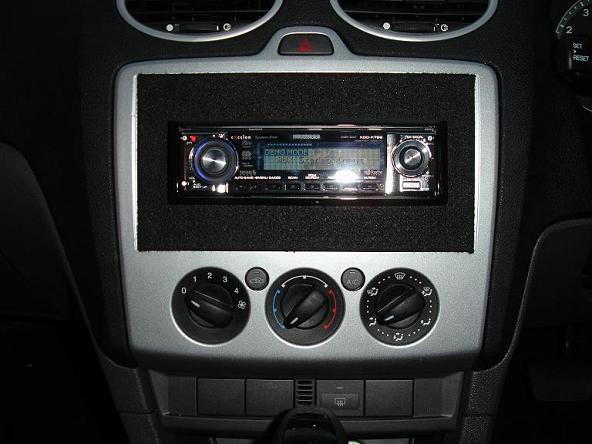

New HU in place - i made that black carpeted plate around it , $aved $25
Upload

Note RIGHT HAND DRIVE - thats how ALL cars in my country are
Upload

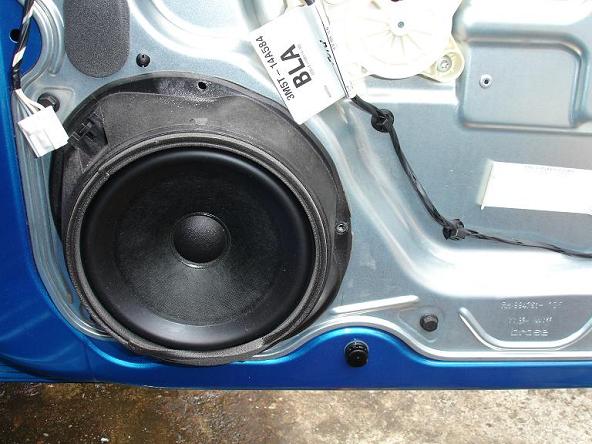

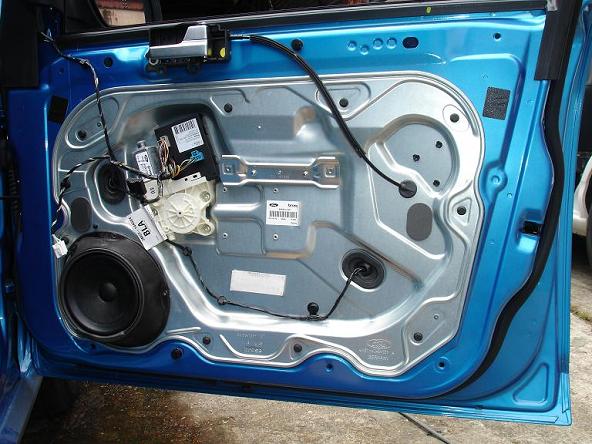

Stock Door speaker
Upload

Upload

Upload

Upload

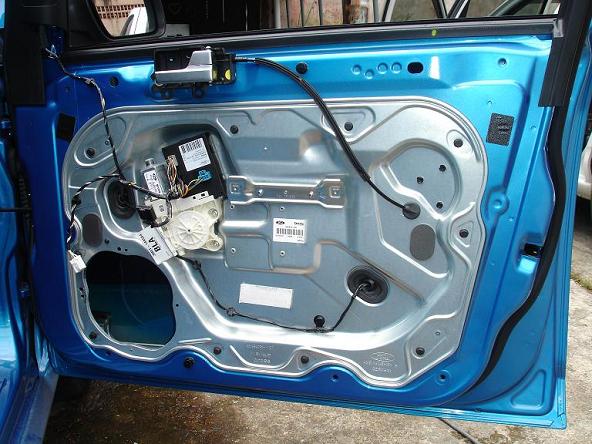

What came out
Upload

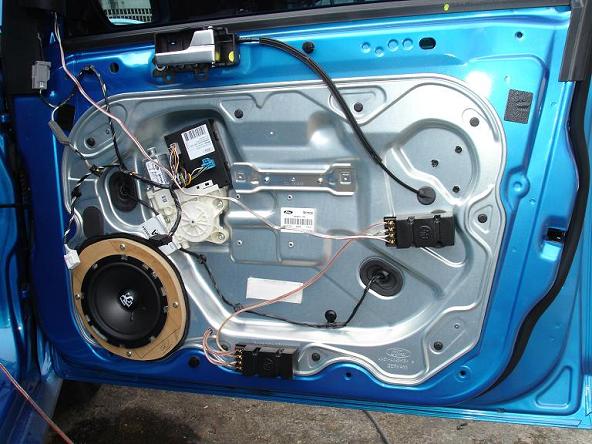

New DLS 6.5" goes in -- made a mdf frame 4 it which is padded by a piece of black carpet 2 prevent any rattle
Upload

Notice how original door still looks even after new comp set went in
Upload

4got 2 take pix of the tweeters when i mounted it in the stock location

Powering whole system is a Crossfire VR705 5 channel amp 50Wx4 RMS @ 4ohms with 300Wx1 on the sub

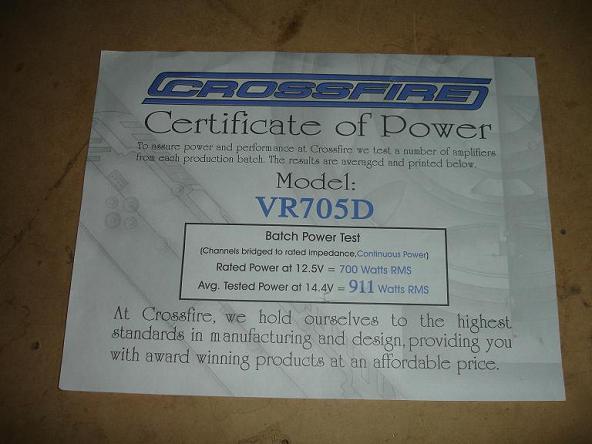

check its birthsheet
Upload

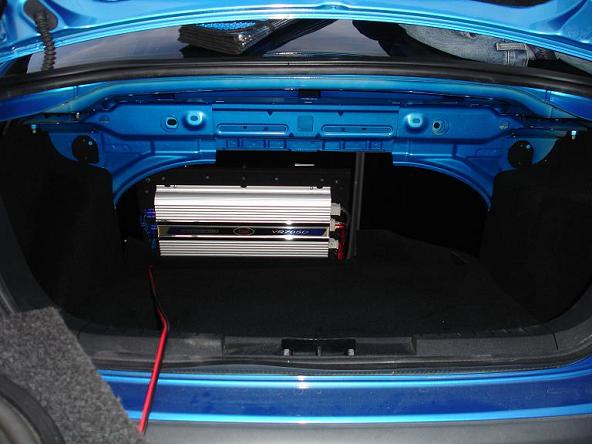

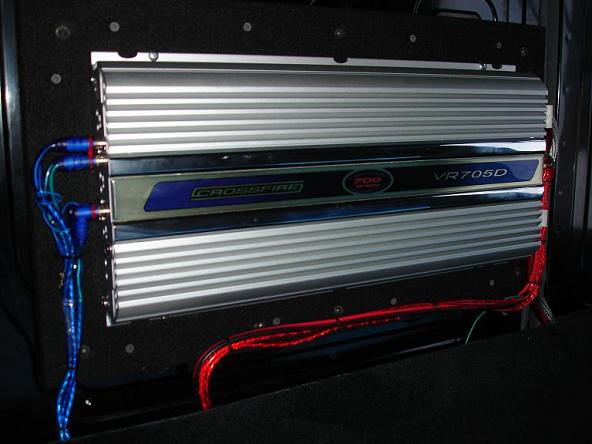

Amp Time
Upload

Upload

Upload

Power wire/fuse on battery
Upload
^^^yes its screwed onto the air cleaner housing , engine room is so crowded that there was no other place i could see 2 mount it on , its attached securely/airtight & won't affect the engine in any way

Damn -- in the hurry I 4got 2 take Front pixs of the box showing the sub , when the owner comes back around in a few days I will take pix of it then
anyway its this sub
Upload
http://www.woofersetc.com/index.cfm?fuseaction=product.display&Product_ID=2157

back of box but we faced it backwards after pic was taken
Upload

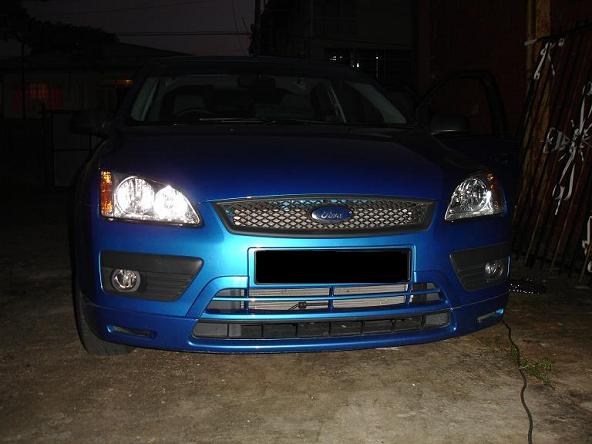

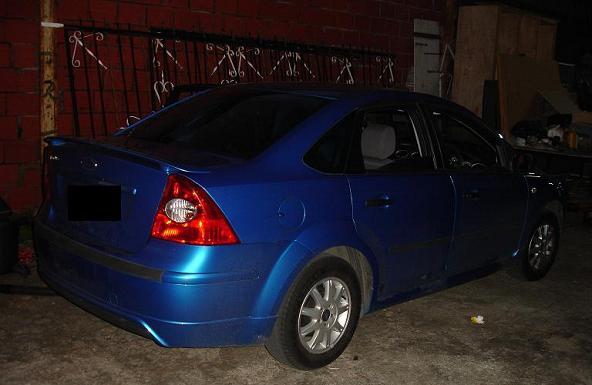

Was getting dark so here r a few quick pix of the car
Upload

Upload

Upload

Upload

well there it is folks - no need 4 me 2 show u wires cause all have been neatly hidden under trim/carpet & u will never know/ see that its there

Sounds quite loud with a slight trunk rattle & front windscreen vibrating a bit noticeably but clean & the difference over stock 'system' & new real system is like night & day ...

......owner was pleased......

Upload


Gold Member
Username: James1115

Ct

Post Number: 6188
Registered: Dec-04
very clean:-)


Bronze Member
Username: Sb2012

Iowa US

Post Number: 76
Registered: Jul-06
noooiiicce:-)...looks great and very clean


Platinum Member
Username: Project6

Post Number: 10151
Registered: Dec-03
Nice and clean install Rovin!


Gold Member
Username: Juliob

Santo DomingoDominican Re...

Post Number: 1973
Registered: Dec-05
yo did it again mr...


Silver Member
Username: Delsole

Post Number: 422
Registered: Feb-05
clean install keep up the good work


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 8859
Registered: Jul-05
Thanx guys - i try ...icon_wink.gif .....icon_mrgreen.gif

i decided a few wks ago 2 do installs 4 ppl in my sparetime (in my country) so i can get the experience of using various brands/models on different cars - that way i get 2 do stuff & it doesnt cost me in fact it will pay me 2 do it -lol .......


Silver Member
Username: Skies

Courtenay, British Colu... Canada

Post Number: 244
Registered: Aug-05
You making the boxes yourself, too?

I've been thinking of doing the same... but most people dont trust a 16 year old with this kind of stuff, unless he works at a shop... which i soon might be :P

You just doing them for friends, or are you advertising?


Silver Member
Username: Skies

Courtenay, British Colu... Canada

Post Number: 245
Registered: Aug-05
OH ... BTW

Nice install, very clean...


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 8862
Registered: Jul-05
i do all install incl boxes by myself

used 2 do it 4 friends/family but when its done i'm still itching 2 do more hook ups so i decided 2 do this now
well i dont really advertise since i dont want alot of ppl wanting me 2 do installs when i already have my reg job but i kinda advertise in a way by putting in my sig on a local forum that i do installs ,gotten quite a few PMs so far but this is actually the 1st job from it . Another guy has been asking me 2 redo his stuff so maybe i will get that small job too .....


Platinum Member
Username: Project6

Post Number: 10599
Registered: Dec-03
Nice work on the install Rovin. Very pro!


Gold Member
Username: Chaunb3400

Huntsville, Alabama U.S.

Post Number: 8780
Registered: Jul-05
goooooooooooooooooooooooooooooood job!!!


Platinum Member
Username: Rovin

1 12 Premier...

Post Number: 10329
Registered: Jul-05

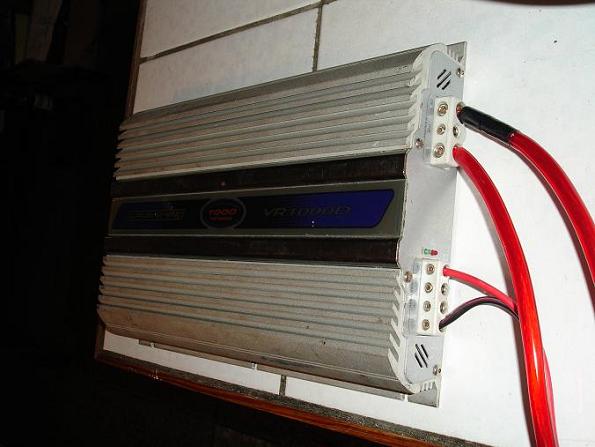

just a lil update 4 those who may have not seen it on another thread : new sub/amp upgrade

Upload

Upload

Upload

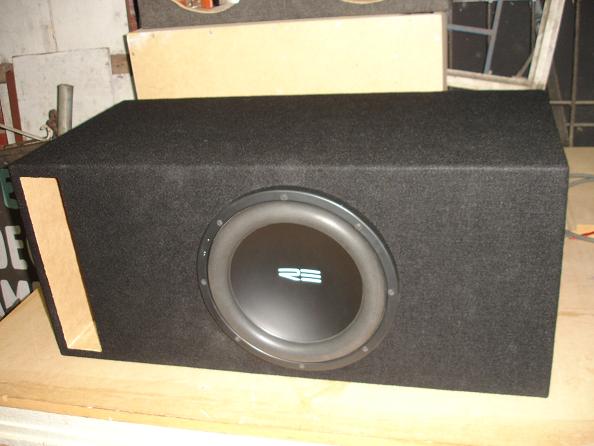

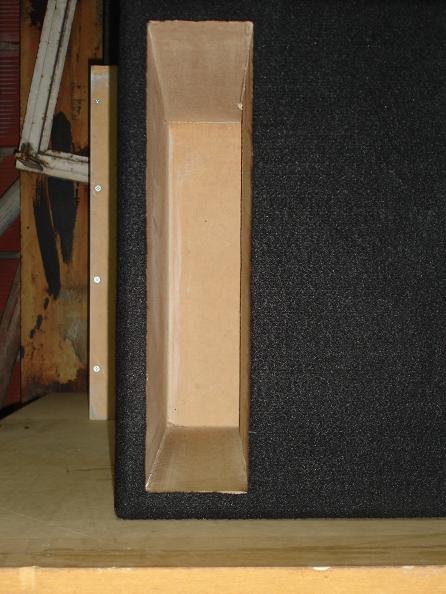

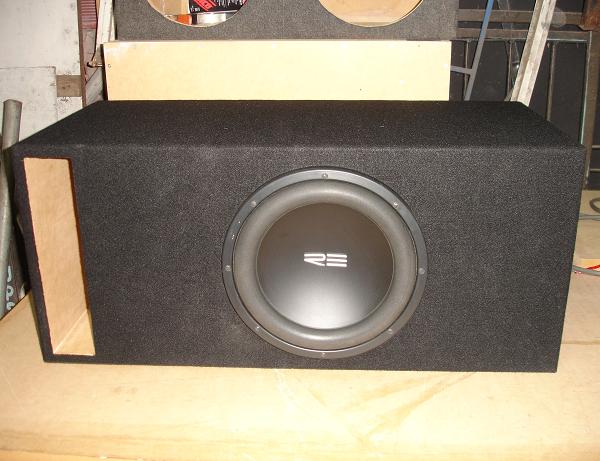

i built this box 4 the car owner - 1 12" RE SX
Upload

Upload

Upload

Upload

Upload

Upload

with some seconds of installing it the rear part of the hood liner where the 3rd brake light is also attached ...just dropped down ! ,damn thing came loose instantly .....no lie !


.....Upload


Platinum Member
Username: Rovin

1 12 Premier...

Post Number: 10330
Registered: Jul-05
oh this was done on the friday b4 xmas http://www.ecoustics.com/electronics/forum/system-showcase/303483.html


Bronze Member
Username: Ndjumpman23mj

Post Number: 56
Registered: Sep-06
clean install


Gold Member
Username: Bestmankind

Fi Audio BTL

Post Number: 8901
Registered: Oct-05
this rovin guy is a professional. who is this rovin guy. how come i've never heard of him. lol.

that is one clean looking box.


Gold Member
Username: Lbeckner

Tulsa, Ok Usa

Post Number: 1426
Registered: Oct-04
Nice install Rovin, but it looks to me like you ran the power wire right beside the hot engine without any splitloom. Isn't that a bad spot? Seems like the heat would endanger the integrity of the wires insulation, but thats just me. Nice job though.


Platinum Member
Username: Rovin

New sub : 1 ...

Post Number: 10388
Registered: Jul-05
^^^thats a good point - its supposed to have some loom over that wire but we didnt have any around since it was wk end & shops here were closed & we just forgot all about it -lol

but by mth end maybe we r gonna upgrade that 4g to 0g since we upgraded the sub\amps .......
