Dayton BR-1 Kit Assembly



Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 17689
Registered: Jun-06
Well I had some time today and decided to attack the Dayton BR-1 monitor kit I recently won in a raffle. The kit comes complete with assembly required for the crossovers and speakers. I had fun with this. Mind you I am no electronic guru and have average soldering capabilities but nevertheless....




The crossover in raw form.

Upload


For those who are well versed it looks elementary. For those not, the land of Oz lol.

My first soldered connection from the rear. Notice the extended leads. After soldering they get trimmed back. Hey I don't do this for a living so cut me some slack lol.

Upload
Upload
Upload


For the next step I had to bypass two capacitors. A simple piggyback formation and connected in parallel.

Upload

After trucking along and following the provided diagrams we are making progress.


Upload

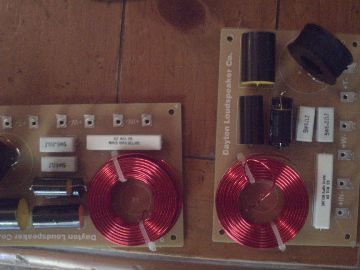

The crossover is complete minus the terminal leads. Mind you I used a hot glue gun to help in securing the components to the board.

Upload

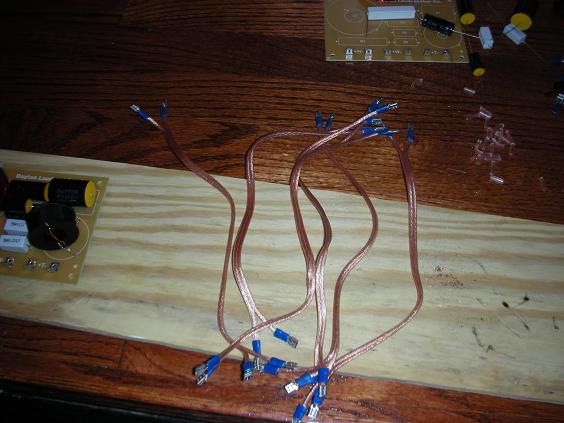

Then there are the wires with terminals. Let me say this process takes as much time as all the soldering with the components with the crossover. With all the cutting and stripping and crimping it takes awhile.


Upload


The crossover is ready for install.

Upload

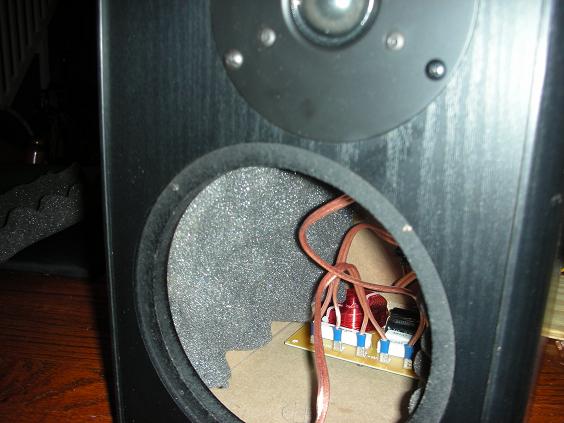

The crossover is positioned and hot glued to the bottom of the speaker.

Upload
Upload


Now for the provided damping material. Cut to fit and secured to the sides and rear.


Upload
Upload


After which we connect and install the woofer using the sealant provided and viola. We have a completed speaker.


Upload


This was only one of two of course but as with anything the second is sure to be easier for me. Like I said I had fun and even gained some more knowledge on hands on speaker building. Tested it out and works great. I can't wait for my amp to arrive for the pair and we'll see where we go from there.


Gold Member
Username: Nd4spd18

Northwest PA

Post Number: 8079
Registered: Jul-06
Thats a nice project. Self built electronics FTW :-)


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 17693
Registered: Jun-06
It is. Fun and educational.


Even for an old fug like me.


Gold Member
Username: Th3pwn3r

I compensate...

Post Number: 8497
Registered: Jul-06
Awesome project Paul, you're the man.


Silver Member
Username: Exige

CDT, Audiopulse Dealer

Post Number: 616
Registered: Nov-07
Nice work! I'll have to link this over to Phil ;)


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 17694
Registered: Jun-06




I do my best.


Gold Member
Username: Van_man

Boston South, MA

Post Number: 4170
Registered: Mar-06
nice job paul. I once made a fm radio from a radio shack kit when i was like 12. Who needed an expensive walkman that played cassettes and stuff anyway.

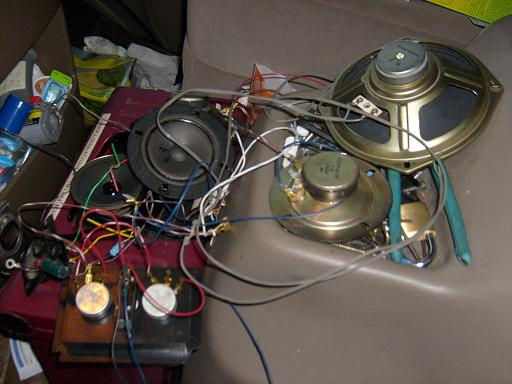

I did the reverse of that today myself.Smashed apart 3 cabinets and took the guds out. unfortanatly, all the subs had foam rot. but the mids and tweets will make for some rainy day fun.

Upload
Upload


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 17722
Registered: Jun-06
Cool.


My first attempt wasn't anything to write home about but once the first crossover was under my belt the second went like a breeze. I actually had fun. I need a better soldering gun for sure. I had a cheap one but it crapped out on me within 15 minutes. I had to fall back on my larger iron. It's not good for fine detailed work but it got the job done.



If I actually knew enough about electronics I could see myself fixing boards and repairing amps/receivers in my spare time. It's relaxing.


Gold Member
Username: Philly306

Laziness and ignorance...

Post Number: 1263
Registered: Apr-07
Put mine together today and i didn't fuck it up! lol
These things kill on the heavy metal. The drum in Walls of babylon-symphony X are awesome. The horns (especially the saxophone halfway through) on Venus de Milo by Miles davis are stunning as well.
Overall i am very satisfied. Thanks Exige.
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload

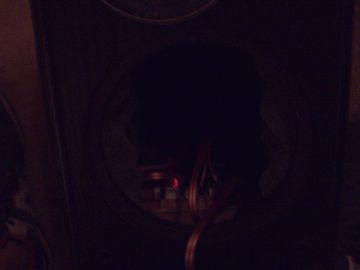

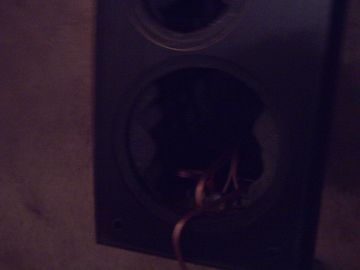

The dark last pics are of inside the cabinet.
