OT: Install instructions



Silver Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 124
Registered: Jul-07
I just got my component speakers and amp today from UPS and was wondering if anyone knew where i could find some good instructions on how to install them? I'm mainly confused with the crossovers so if anyone has some or know where to find them it would be extremely appreciated.


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 1589
Registered: Mar-06
Basically you need to run your postitve and negative into the crossover where it has a + & - that probably says something about in or input over them. For the output to the speaker and tweet there should be a + & - label speaker and tweeter. I would think it would explain itself... Mount the crossover in the door if it is possible, if not get it as close to the speaker as you can.

Hope that helps


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 1590
Registered: Mar-06
the first positive and negative will be from your source HU or amp. Hopefully an amp since you are using components


Gold Member
Username: Bernymac

Cambodia

Post Number: 3576
Registered: Sep-04

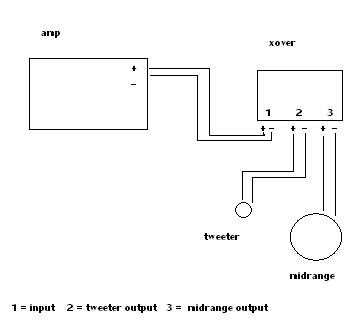

Upload


Gold Member
Username: Shortysetnies

Rock Vegas, NC US

Post Number: 1592
Registered: Mar-06
bingo^


Silver Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 125
Registered: Jul-07
thanks that helps alot seems like common sense now:-)
