Machining class final project



Silver Member
Username: Wickedbass

Nashville, Tn

Post Number: 151
Registered: Jan-08

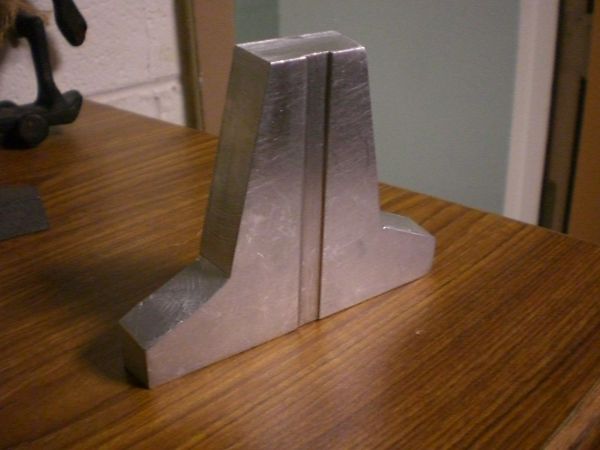

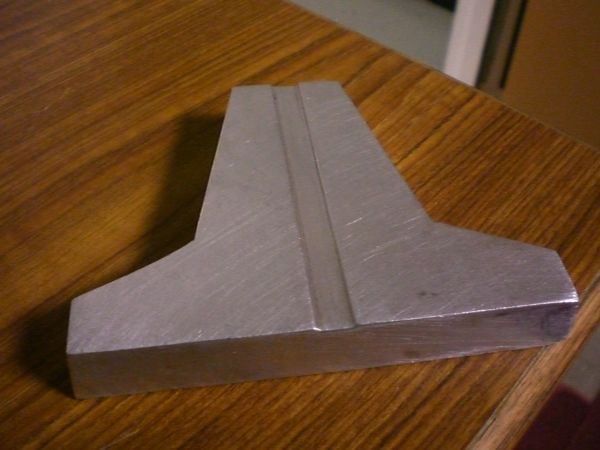

Just a couple pics of my final project for my machining class. Made it out of a solid piece of aluminum on a milling machine.

Upload
Upload

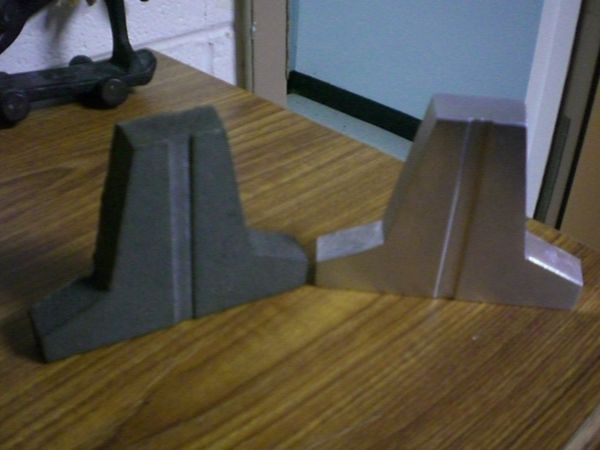

When I was finished machining the aluminum one I used it as a pattern to make one out of cast iron.
Upload

My next project is going to be the Ascendant Audio symbol.


Upload


Platinum Member
Username: Wingmanalive

A pic is worth 1000 posts!!

Post Number: 19181
Registered: Jun-06
Holy fucktards dude that's cool.


Gold Member
Username: Shortysetnies

Andrew Capps, NC US

Post Number: 2979
Registered: Mar-06
That is sweet dude. Make an FI one for me


Gold Member
Username: Jtown

Texas

Post Number: 3353
Registered: Mar-07
polish that aluminum and paint the center strip black!!! good job btw...


Platinum Member
Username: Rovin

1 15 = 149.5 DBsTrinidad & T...

Post Number: 14467
Registered: Jul-05
nice creative way to combine school & car audio ......


Gold Member
Username: Naledge503

Portland, Or

Post Number: 4193
Registered: Jun-06
Good job, looks great! I don't know anything about machining, so, how difficult will the ascendant symbol be compared to the jl?

Also, would you be able to machine sunwoofer motors after you are done with school?


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 4727
Registered: Jun-05
what kind of machine were you using? IM assuming a bridgeport. My dad was a machinist for almost 30 yrs at gillette he was running some serious machines mazek's and wat not. We have a cnc machine and a lathe in our garage lol. there fun when u have nothing else to do


Silver Member
Username: Wickedbass

Nashville, Tn

Post Number: 153
Registered: Jan-08
Thanks guys!!!

Hopefully I can get the Ascendant symbol done before this semester lets out. It will be a little more difficult than the JL. I did the JL first mainly because of simple angles and all straight lines.

@Naledge
Hopefully when I get out of school there wont be too much that I couldn't tackle. That would be a sweet project!

@charlie
Yup just a simple knee and column, nothin special. Wish I had a lathe/cnc in my garage, I dont think I would ever turn them off! **Jealous**


Gold Member
Username: The_image_dynamic

San Diego, California

Post Number: 4839
Registered: Dec-06
You can make serious cake if you learn how to program and run a CNC. I know a couple complete jackasses that make $25 an hour. Nice job on that JL by the way.


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 4731
Registered: Jun-05
lol ya brad u program and let it sit lol. just make sure to not crash those machines otherwise u look bad lol


Gold Member
Username: Livin_loud

COD4 Addict

Post Number: 2753
Registered: Jan-06
how big are those?


Silver Member
Username: Wickedbass

Nashville, Tn

Post Number: 158
Registered: Jan-08
They are about 3 3/4" tall and about 4 3/4" wide. I plan on making the Ascendant symbol much bigger than the JLs.
