Help wiring up my system to include a crossover and Sub



New member
Username: Willix

Post Number: 1
Registered: Nov-15

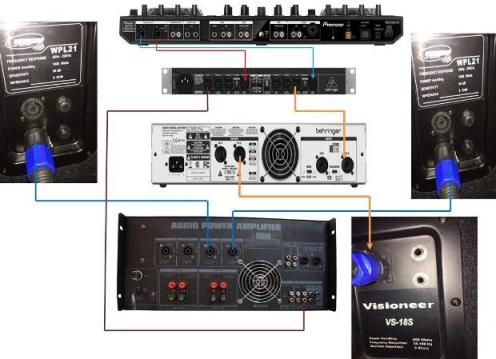

Trying to help a friend wire up two amps, a mixer and a crossover to two passive speakers and one passive sub woofer. One amp lacks a speakon inputs, I therefore connect the RCA. All summarized in the diagram below:
I will greatly appreciate any assistance. As for now I only have two speakers playing. The sub is not playing.Upload


Platinum Member
Username: Jan_b_vigne

Dallas, TX

Post Number: 18102
Registered: May-04
.

Points for the illustration. Unfortunately, it is still impossible to see exactly how the system is connected.

Are you going from a balanced to an unbalanced connection at some point? If so, it's possible your pin out assignment on the connector is not correct for the connector/circuit you are feeding to or from.

Check your owner's manual for a clarification regarding which pin is hot at each connector. This could still be your solution if all connections are made in balanced mode. There is still a lack of consistency among manufacturers as to how their balanced connectors get wired.


.
