What size amp do I need...?



New member
Username: Morgan1028

Ellenwood, Georgia United States

Post Number: 1
Registered: Apr-08
I have a AudioBahn 15 and I need to know what kind of/ size amp I need to get to push it. this is the information I have on the sub:

Technical Specification
• Sensitivity: 94 dB
• RMS Power Range : 2000 Watts
• Peak Power Handling: 4000 Watts
• Impedance: Dual 2 Ohm
• Low Frequency response: 18 Hz
• High Frequency Response: 5000-25000 Hz
• Diameter: 15 Inch
Features
• 15" Subwoofer
• 360 oz. Magnet Weight
• 2000 RMS Power Handling
• 18Hz - 500Hz Frequency Response
• 94dB Efficiency
• 3" Dual 2 Ohms Voice Coil
• 1 Ohm or 4 Ohms Operation
• 8" Mounting Depth
• 13-3/4" Hole Cutout
• 15-3/8" Outer Diameter
• PHAT 2 Multi-layer Foam Surround
• Stamped and Balanced Aluminum Cone
• Dual 2 Ohm Voice Coils
• 1 Ohm or 4 Ohm Operation
• 6 mm Cast Basket
• Multi-connect Lug Lock Terminals
• Priced per speaker
• 1 Ohm or 4 Ohms Operation
• 8" Mounting Depth
• 13-3/4" Hole Cutout
• 15-3/8" Outer Diameter

Please help me.


Gold Member
Username: The_image_dynamic

San Diego, California

Post Number: 3777
Registered: Dec-06
For the AW1508T you will be good with between 1000-1200RMS without having to upgrade your electrical system. Your truck has an 145 amp alternator so you will be fine inside that range. A good choice for the money would be the Audioque 1200D which puts out 1200RMS @ 1 ohm. It costs $249 + ship and can be found here:

http://www.audioque.com/aq/AQamps.htm

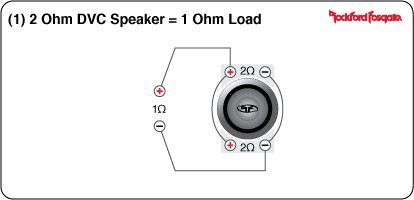

You would wire your sub like this to get a 1 ohm load:

Upload


Bronze Member
Username: Dirtrider125

Post Number: 24
Registered: Apr-07
kx1200.1


Silver Member
Username: Drant19

DUB-C, TX

Post Number: 759
Registered: Aug-07
budget for the amp?


Gold Member
Username: Juliob

Santo DomingoDominican Re...

Post Number: 5287
Registered: Dec-05
i'd say audioque 2200D. I know that audiobahn will not handle that amount of power.. but that way he really knows he got the juice to push it
