Some ?'s about new AQ amp

Chris Bronze Member Username: Diehlerman Post Number: 47 Registered: Jan-08	Posted on Monday, April 07, 2008 - 19:06 GMT just got my new AQ1200d amp in the mail, I pulled it out of the box and noticed it had 4 speaker inputs (2 neg and 2 pos.) how would I hook up my 2 4ohm DVC subs to get the 1 ohm power?

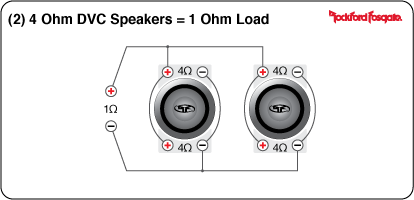

I- Malik Silver Member Username: Imalik SD2.5......ED9.1=Boom, New Jersey Lord Protect... Post Number: 581 Registered: May-06	Posted on Monday, April 07, 2008 - 19:53 GMT Here You go
Stavenmist316 Gold Member Username: Big_edge_head Milwaukee, Wisconsin MY SUBS GET ... Post Number: 1877 Registered: Mar-07	Posted on Monday, April 07, 2008 - 19:59 GMT All you have to do is use 2 of the four terminals on the amp btw
M.S. Gold Member Username: Nd4spd18 Northwest PA Post Number: 7274 Registered: Jul-06	Posted on Monday, April 07, 2008 - 23:27 GMT Both + and both - are connected together in parallel inside the amp. Using one set or both makes absolutely NO difference as long as your speakers are wired to the correct impedance.
juliob Gold Member Username: Juliob Santo DomingoDominican Re... Post Number: 5266 Registered: Dec-05	Posted on Tuesday, April 08, 2008 - 00:24 GMT that's called monoblock
Stavenmist316 Gold Member Username: Big_edge_head Milwaukee, Wisconsin MY SUBS GET ... Post Number: 1879 Registered: Mar-07	Posted on Tuesday, April 08, 2008 - 02:52 GMT Dual monoblock*
Chris Bronze Member Username: Diehlerman Post Number: 50 Registered: Jan-08	Posted on Tuesday, April 08, 2008 - 05:40 GMT ok...just making sure they have some goofy a s s diagrams in the manual.
M.S. Gold Member Username: Nd4spd18 Northwest PA Post Number: 7281 Registered: Jul-06	Posted on Tuesday, April 08, 2008 - 07:08 GMT " Dual monoblock* " NO, that would be two mono amps in one case, which this is not.
juliob Gold Member Username: Juliob Santo DomingoDominican Re... Post Number: 5270 Registered: Dec-05	Posted on Tuesday, April 08, 2008 - 22:59 GMT exactly.
corbin wiechens Bronze Member Username: Corbin01gti Post Number: 17 Registered: Apr-08	Posted on Saturday, April 12, 2008 - 22:01 GMT how long did it take to get your amp. i just ordered the 2200 on friday
Joe S Silver Member Username: Kaerfpl Spencerport, NY USA Post Number: 885 Registered: Jun-06	Posted on Saturday, April 12, 2008 - 22:48 GMT I have a question about my AQ1200! I got everything wired, and the system is working, but it is not being powered all the way. It's like the resistance is wrong or something. Ive tried wiring it in different ways but its still the same. Do I have to have both positive and negative terminals going to my subs?
Chris Bronze Member Username: Diehlerman Post Number: 61 Registered: Jan-08	Posted on Sunday, April 13, 2008 - 00:38 GMT took 4 days to get it
jnralp00 Bronze Member Username: Jnralp00 Post Number: 26 Registered: Nov-06	Posted on Monday, April 14, 2008 - 04:01 GMT Nice choice of amps... I'm running two of the AQ2200's
